RocketMQ 入门

• 简介
• Docker 部署RocketMQ
  • 1. 拉取镜像
  • 2. 创建网络
  • 2. 启动Name Server容器
  • 3. 启动Broker容器
  • 4. 启动Console容器
• 使用 RocketMQ
  • java项目
  • Spring Cloud 项目
  • Spring Cloud Stream RocketMQ

简介

RocketMQ 是阿里巴巴开源的一款高性能、高可靠的消息队列中间件，它具有以下特点：

• 高性能：RocketMQ 支持高并发、高吞吐量的消息处理能力，能够满足大规模分布式系统的需求。
• 高可靠性：RocketMQ 提供了多种消息存储和消费机制，确保消息的可靠性和持久性。
• 高可用性：RocketMQ 支持集群部署，能够自动进行故障转移和负载均衡，提高系统的可用性。

官网： https://rocketmq.apache.org/zh/

文档：https://rocketmq.apache.org/zh/docs/quickStart/02quickstartWithDocker

Docker 部署RocketMQ

1. 拉取镜像

docker pull apache/rocketmq:5.3.0

2. 创建网络

docker network create rocketmq

2. 启动Name Server容器

docker run -d --name rmqnamesrv -p 9876:9876 --network rocketmq apache/rocketmq:5.3.0 sh rmqnamesrv

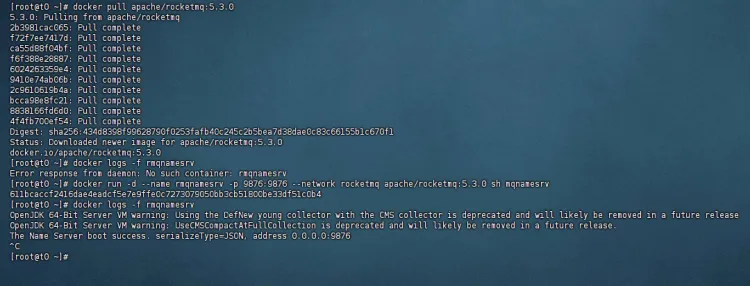

查看日志

docker logs -f rmqnamesrv

3. 启动Broker容器

mkdir -p /data/mq/broker
docker cp rmqnamesrv:/home/rocketmq/rocketmq-5.3.0/conf /data/mq/broker

说明

先把name server中的配置文件拷贝出来一份，因为broker启动时需要指定配置文件路径 修改broker.conf，新增brokerIP1=xxx，xxx为宿主机的ip地址

broker.conf文件内容

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
#  limitations under the License.

brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
brokerIP1 = 192.168.118.128

docker run -d \
--name rmqbroker \
--network rocketmq \
-p 10912:10912 -p 10911:10911 -p 10909:10909 \
-p 8080:8080 -p 8081:8081 \
-e "NAMESRV_ADDR=rmqnamesrv:9876" \
-v /data/mq/broker/conf:/home/rocketmq/rocketmq-5.3.0/conf \
apache/rocketmq:5.3.0 sh rmqbroker --enable-proxy \
-c /home/rocketmq/rocketmq-5.3.0/conf/broker.conf

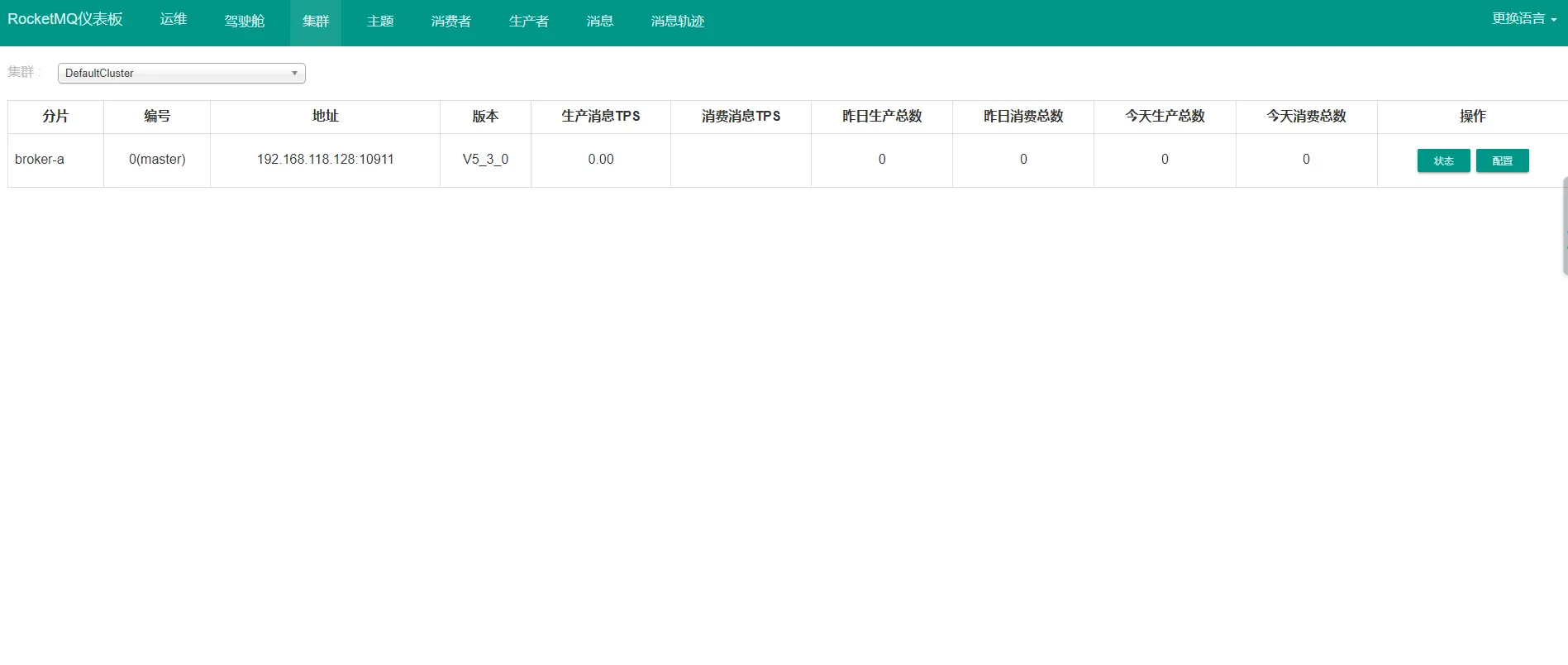

4. 启动Console容器

docker pull apacherocketmq/rocketmq-dashboard:latest

docker run -d --name rocketmq-dashboard -e "JAVA_OPTS=-Drocketmq.namesrv.addr=192.168.118.128:9876" -p 9999:8080 -t apacherocketmq/rocketmq-dashboard:latest

使用 RocketMQ

说明

RocketMQ 提供了多种语言的客户端，包括 Java、Python、C++ 等。本文将介绍如何使用 Java 客户端发送和接收消息。

说明

消费者待补充

java项目

创建一个简单的maven项目

引入依赖

<dependency>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-client-java</artifactId>
    <version>5.0.7</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
    <version>2.0.16</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-simple</artifactId>
    <version>2.0.16</version>
</dependency>

其中日志不是必须的，可以替换成别的

发送消息

这里需要一个RocketMQ主题

进入之前创建的Broker容器,创建主题

$ docker exec -it rmqbroker bash
$ sh rmqadmin updatetopic -t MyTopic -c DefaultCluster

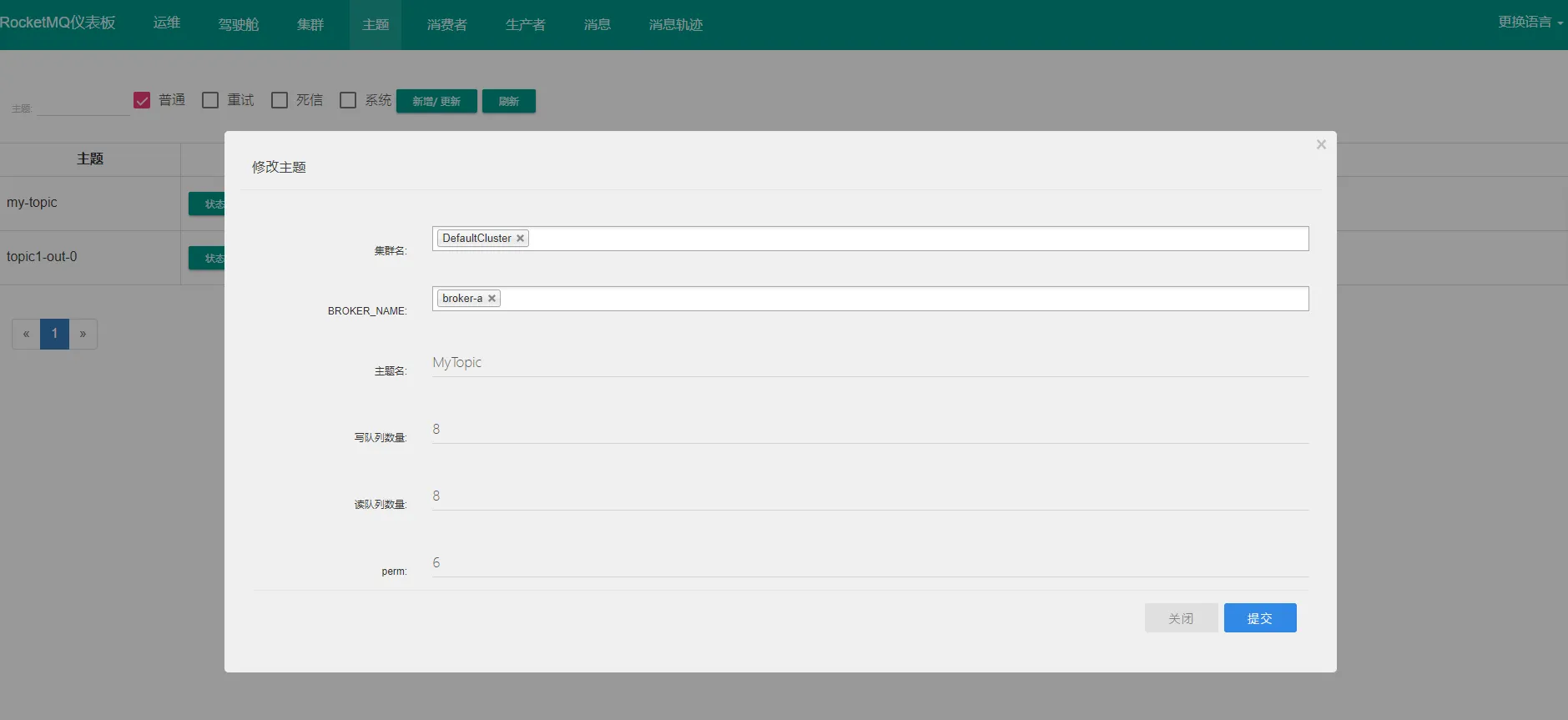

或者通过控制台创建

package com.example;

import org.apache.rocketmq.client.apis.ClientConfiguration;
import org.apache.rocketmq.client.apis.ClientConfigurationBuilder;
import org.apache.rocketmq.client.apis.ClientException;
import org.apache.rocketmq.client.apis.ClientServiceProvider;
import org.apache.rocketmq.client.apis.message.Message;
import org.apache.rocketmq.client.apis.producer.Producer;
import org.apache.rocketmq.client.apis.producer.SendReceipt;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.IOException;

public class ProducerExample {
    private static final Logger logger = LoggerFactory.getLogger(ProducerExample.class);

    public static void main(String[] args) throws ClientException {
        // 接入点地址，需要设置成Proxy的地址和端口列表，一般是xxx:8080;xxx:8081
        // 此处为示例，实际使用时请替换为真实的 Proxy 地址和端口
        String endpoint = "192.168.118.128:8081";
        // 消息发送的目标Topic名称，需要提前创建。
        String topic = "MyTopic";
        ClientServiceProvider provider = ClientServiceProvider.loadService();
        ClientConfigurationBuilder builder = ClientConfiguration.newBuilder().setEndpoints(endpoint);
        ClientConfiguration configuration = builder.build();
        // 初始化Producer时需要设置通信配置以及预绑定的Topic。
        Producer producer = provider.newProducerBuilder()
            .setTopics(topic)
            .setClientConfiguration(configuration)
            .build();
        // 普通消息发送。
        Message message = provider.newMessageBuilder()
            .setTopic(topic)
            // 设置消息索引键，可根据关键字精确查找某条消息。
            .setKeys("messageKey")
            // 设置消息Tag，用于消费端根据指定Tag过滤消息。
            .setTag("messageTag")
            // 消息体。
            .setBody("messageBody".getBytes())
            .build();
        try {
            // 发送消息，需要关注发送结果，并捕获失败等异常。
            SendReceipt sendReceipt = producer.send(message);
            logger.info("Send message successfully, messageId={}", sendReceipt.getMessageId());
        } catch (ClientException e) {
            logger.error("Failed to send message", e);
        }
        try {
            producer.close();
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }
}

点击运行，查看结果

接收消息

package com.example;

import java.io.IOException;
import java.util.Collections;
import org.apache.rocketmq.client.apis.ClientConfiguration;
import org.apache.rocketmq.client.apis.ClientException;
import org.apache.rocketmq.client.apis.ClientServiceProvider;
import org.apache.rocketmq.client.apis.consumer.ConsumeResult;
import org.apache.rocketmq.client.apis.consumer.FilterExpression;
import org.apache.rocketmq.client.apis.consumer.FilterExpressionType;
import org.apache.rocketmq.client.apis.consumer.PushConsumer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class PushConsumerExample {
    private static final Logger logger = LoggerFactory.getLogger(PushConsumerExample.class);

    private PushConsumerExample() {
    }

    public static void main(String[] args) throws ClientException, IOException, InterruptedException {
        final ClientServiceProvider provider = ClientServiceProvider.loadService();
        // 接入点地址，需要设置成Proxy的地址和端口列表，一般是xxx:8080;xxx:8081
        // 此处为示例，实际使用时请替换为真实的 Proxy 地址和端口
        String endpoints = "192.168.118.128:8081";
        ClientConfiguration clientConfiguration = ClientConfiguration.newBuilder()
            .setEndpoints(endpoints)
            .build();
        // 订阅消息的过滤规则，表示订阅所有Tag的消息。
        String tag = "*";
        FilterExpression filterExpression = new FilterExpression(tag, FilterExpressionType.TAG);
        // 为消费者指定所属的消费者分组，Group需要提前创建。
        String consumerGroup = "YourConsumerGroup";
        // 指定需要订阅哪个目标Topic，Topic需要提前创建。
        String topic = "MyTopic";
        // 初始化PushConsumer，需要绑定消费者分组ConsumerGroup、通信参数以及订阅关系。
        PushConsumer pushConsumer = provider.newPushConsumerBuilder()
            .setClientConfiguration(clientConfiguration)
            // 设置消费者分组。
            .setConsumerGroup(consumerGroup)
            // 设置预绑定的订阅关系。
            .setSubscriptionExpressions(Collections.singletonMap(topic, filterExpression))
            // 设置消费监听器。
            .setMessageListener(messageView -> {
                // 处理消息并返回消费结果。
                logger.info("Consume message successfully, messageId={}", messageView.getMessageId());
                return ConsumeResult.SUCCESS;
            })
            .build();
        Thread.sleep(Long.MAX_VALUE);
        // 如果不需要再使用 PushConsumer，可关闭该实例。
         pushConsumer.close();
    }
}

运行，保持接收接口，再运行发送消息接口，查看结果

Spring Cloud 项目

说明

Spring Cloud 项目

引入依赖

<properties>
    <java.version>1.8</java.version>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <spring-boot.version>2.6.13</spring-boot.version>
    <spring-cloud-alibaba.version>2021.0.5.0</spring-cloud-alibaba.version>
    <spring-cloud.version>2021.0.5</spring-cloud.version>
</properties>
<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-stream-rocketmq</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-bootstrap</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>
<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-dependencies</artifactId>
            <version>${spring-boot.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
            </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-dependencies</artifactId>
            <version>${spring-cloud-alibaba.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

这里使用的Spring Cloud Alibaba 2021.0.5.0,Spring Cloud 2021.0.5版本，Spring Boot 2.6.13版本

配置文件

spring:
  cloud:
    stream:
      rocketmq:
        binder:
          enabled: true
          name-server: 192.168.118.128:9876
        bindings:
          topic1-out-0:
            producer:
              sync: true

创建一个Controller

package com.example.stream.controller;

import org.springframework.cloud.stream.function.StreamBridge;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@RequestMapping("/stream/mq")
public class MQController {
    @Resource
    private StreamBridge streamBridge;

    @PostMapping("/rocket/send")
    public String sendRocketMQ() {
        String bindingName = "topic1-out-0";
        streamBridge.send(bindingName, "rocketmq", "Hello RocketMQ");
        return "success";
    }
}

假设nacos、网关已经配置好，启动项目，调用接口http://localhost:8080/stream/mq/rocketmq/send，查看控制台输出

说明

Spring Cloud 版本不需要创建Topic, 项目会自动把topic1-out-0作为Topic创建。

Spring Cloud Stream RocketMQ

待补充
